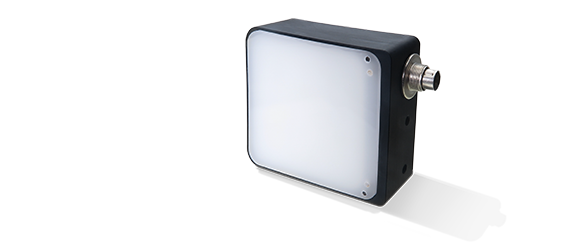

Area lighting

Use:

direct | indirect | backlight

Applications:

Morphologies, e.g.

Structures
Scratches
Bumps
Dents
Components

Area - Models and technical data

white

Model	Rectangle Length [mm]	Width [mm]	Operating mode Continuous	Pulse type	Strobe	iBlue drive
L-VL-EB4545W	450	450
L-VL-EB2730W	270	300
L-VL-EB1260W	120	600
L-VL-CB1527W	152	272
L-VL-CB1521W	152	212
L-VL-CB1212W	122	122
L-VL-CB0909W	92	92
L-VL-CB0606W	62	62
L-VL-CB0306W	32	62
L-VL-CB0303W	32	32
L-PRY1609A-W00S	158	86
L-PRY1609A-W00P	158	86
L-PRY1609A-W00i	158	86
L-PRY0906A-W00S	68	86
L-PRY0906A-W00P	68	86
L-PRY0906A-W00i	68	86
L-PRY0504A-W00S	43	45
L-PRY0504A-W00P	43	45
L-PRY0504A-W00i	43	45
L-PRK0608A-W00i	32	32
L-PRH0104A-W00i	40	80
L-PRH0104A-W00C	40	80
L-BKL1007B-W00S	70	100
L-BKL1007B-W00i	70	100
L-BKL1007B-W00C	70	100
L-BKL0707B-W00S	70	70
L-BKL0707B-W00i	70	70
L-BKL0707B-W00C	70	70
L-BKL0705B-W00S	50	70
L-BKL0705B-W00i	50	70
L-BKL0705B-W00C	50	70
L-BKL0505A-W00S	50	50
L-BKL0505A-W00i	50	50
L-BKL0505A-W00C	50	50
L-BKL0504B-W00S	40	50
L-BKL0504B-W00i	40	50
L-BKL0504B-W00C	40	50
L-BKL0303A-W00S	30	30
L-BKL0303A-W00i	30	30
L-BKL0303A-W00C	30	30
L-BKK1514A-W00S	150	140
L-BKK1514A-W00C	150	140

blue

Model	Rectangle Length [mm]	Width [mm]	Operating mode Continuous	Pulse type	Strobe	iBlue drive
L-VL-CB0909B-C	92	92
L-VL-CB0909B	92	92
L-PRY1606A-470S	158	86
L-PRY1606A-470P	158	86
L-PRY1606A-470i	158	86
L-PRY1606A-470C	158	86
L-PRY0906A-470S	68	86
L-PRY0906A-470P	68	86
L-PRY0906A-470i	68	86
L-PRY0906A-470C	68	86
L-PRY0504A-470S	43	45
L-PRY0504A-470P	43	45
L-PRY0504A-470i	43	45
L-PRY0504A-470C	43	45
L-PRK0608A-470i	32	32
L-PRH0104A-470i	40	80
L-PRH0104A-470C	40	80
L-BKL1007B-470S	70	100
L-BKL1007B-470i	70	100
L-BKL1007B-470C	70	100
L-BKL0707B-470S	70	70
L-BKL0707B-470i	70	70
L-BKL0707B-470C	70	70
L-BKL0705B-470S	50	70
L-BKL0705B-470i	50	70
L-BKL0705B-470C	50	70
L-BKL0505A-470S	50	50
L-BKL0505A-470i	50	50
L-BKL0505A-470C	50	50
L-BKL0504B-470S	40	50
L-BKL0504B-470i	40	50
L-BKL0504B-470C	40	50
L-BKL0303A-470S	30	30
L-BKL0303A-470i	30	30
L-BKL0303A-470C	30	30
L-BKK1514A-470S	150	140
L-BKK1514A-470C	150	140

green

Model	Rectangle Length [mm]	Width [mm]	Operating mode Continuous	Pulse type	Strobe	iBlue drive
L-VL-CB0909G-C	92	92
L-PRY1606A-525S	158	86
L-PRY1606A-525P	158	86
L-PRY1606A-525i	158	86
L-PRY1606A-525C	158	86
L-PRY0906A-525S	68	86
L-PRY0906A-525P	68	86
L-PRY0906A-525i	68	86
L-PRY0906A-525C	68	86
L-PRY0504A-525S	43	45
L-PRY0504A-525P	43	45
L-PRY0504A-525i	43	45
L-PRY0504A-525C	43	45
L-PRK0608A-525i	32	32
L-PRH0104A-525i	40	80
L-PRH0104A-525C	40	80
L-BKL1007B-525S	70	100
L-BKL1007B-525i	70	100
L-BKL1007B-525C	70	100
L-BKL0707B-525S	70	70
L-BKL0707B-525i	70	70
L-BKL0707B-525C	70	70
L-BKL0705B-525S	50	70
L-BKL0705B-525i	50	70
L-BKL0705B-525C	50	70
L-BKL0505A-525S	50	50
L-BKL0505A-525i	50	50
L-BKL0505A-525C	50	50
L-BKL0504B-525S	40	50
L-BKL0504B-525i	40	50
L-BKL0504B-525C	40	50
L-BKL0303A-525S	30	30
L-BKL0303A-525i	30	30
L-BKL0303A-525C	30	30
L-BKK1514A-525S	150	140
L-BKK1514A-525C	150	140

red

Model	Rectangle Length [mm]	Width [mm]	Operating mode Continuous	Pulse type	Strobe	iBlue drive
L-VL-CB0909R-CL	92	92
L-VL-CB0303R	32	32
L-PRY1609A-630S	158	86
L-PRY1609A-630i	158	86
L-PRY1609A-630C	158	86
L-PRY0906A-630S	68	86
L-PRY0906A-630i	68	86
L-PRY0906A-630C	68	86
L-PRY0504A-630S	43	45
L-PRY0504A-630i	43	45
L-PRY0504A-630C	43	45
L-PRK0608A-630i	32	32
L-PRH0104A-630i	40	80
L-PRH0104A-630C	40	80
L-BKL1007B-630S	70	100
L-BKL1007B-630i	70	100
L-BKL1007B-630C	70	100
L-BKL0707B-630S	70	70
L-BKL0707B-630i	70	70
L-BKL0707B-630C	70	70
L-BKL0705B-630S	50	70
L-BKL0705B-630i	50	70
L-BKL0705B-630C	50	70
L-BKL0505A-630S	50	50
L-BKL0505A-630i	50	50
L-BKL0505A-630C	50	50
L-BKL0504B-630S	40	50
L-BKL0504B-630i	40	50
L-BKL0504B-630C	40	50
L-BKL0303A-630S	30	30
L-BKL0303A-630i	30	30
L-BKL0303A-630C	30	30
L-BKK1514A-630S	150	140
L-BKK1514A-630C	150	140

IR

Model	Rectangle Length [mm]	Width [mm]	Operating mode Continuous	Pulse type	Strobe	iBlue drive
L-PRY1609A-880S	158	86
L-PRY1609A-880i	158	86
L-PRY1609A-880C	158	86
L-PRY0906A-880S	68	86
L-PRY0906A-880i	68	86
L-PRY0906A-880C	68	86
L-PRY0504A-880S	43	45
L-PRY0504A-880i	43	45
L-PRY0504A-880C	43	45
L-PRK0608A-880i	32	32
L-PRH0104A-850i	40	80
L-PRH0104A-850C	40	80
L-BKL1007B-850S	70	100
L-BKL1007B-850i	70	100
L-BKL1007B-850C	70	100
L-BKL0707B-850S	70	70
L-BKL0707B-850i	70	70
L-BKL0707B-850C	70	70
L-BKL0705B-850S	50	70
L-BKL0705B-850i	50	70
L-BKL0705B-850C	50	70
L-BKL0505A-850S	50	50
L-BKL0505A-850i	50	50
L-BKL0505A-850C	50	50
L-BKL0504B-850S	40	50
L-BKL0504B-850i	40	50
L-BKL0504B-850C	40	50
L-BKL0303A-850S	30	30
L-BKL0303A-850i	30	30
L-BKL0303A-850C	30	30
L-BKK1514A-850S	150	140
L-BKK1514A-850C	150	140
